How do I choose a wheelchair ramp

The current ADA guidelines are that for every 1” rise, you should have 12” of ramp, however some situations might require a more gradual incline, or a steeper one. Threshold ramps are a nice solution to the typical rises you might find in your home, and provide an appropriate incline for wheelchair or scooters.

What should I look for in a wheelchair ramp?

The current ADA guidelines are that for every 1” rise, you should have 12” of ramp, however some situations might require a more gradual incline, or a steeper one. Threshold ramps are a nice solution to the typical rises you might find in your home, and provide an appropriate incline for wheelchair or scooters.

How do I choose a ramp?

First, you’ll need to take a look at your stairs and figure out how long you need to ramp to be. The American Disability Association guidelines for ramps require 1 foot of length for every 1 inch of rise. For example, if you have three steps with a total rise of 21 inches, then you would need 21 feet of ramp length.

What is the best grade for a wheelchair ramp?

For commercial use when somebody is sitting in the wheelchair or scooter while it climbs the ramp, ADA recommends a 1:12 slope, which means that every 1″ of vertical rise requires at least 1′ (12″) of ramp length (5 degrees of incline).

How long of a wheelchair ramp do I need?

The Americans with Disabilities Act (ADA) requires a 1:12 slope ratio for commercial ramps (ramps used in public spaces). This means that for every 1 inch of rise, 12 inches of ramp are required. For example, if an entryway is 36 inches high, you will need a ramp that is at least 36 feet long.

How steep can a residential ramp be?

The ADA provides good direction about ratios for wheelchair ramp slopes. The commercial and public facility standard for slope is 1:12 (in inches) or about 5 degrees of incline. For those building ramps at home, the ratio can be as steep as 3:12 or almost 15 degrees.

How do you determine ramp length?

How long of a ramp should I buy? Determining Ramp Length: Measure total rise (how many inches from lower level to upper level) and divide by the slope.

How long does a ramp need to be for 3 steps?

Here are some factors that should be considered: Stairs typically run about 7.5 inches high each so for three stairs a standard rise or height would be about 22 inches. The ADA [Americans with Disabilities Act] recommends 1 foot for ramp for every one inch of rise.

What angle should a ramp be?

Bottom line: recommended ramp slope: The preferred slope for a building access ramp is 1:12 or 1 inch of rise per 12 inches of horizontal run – that’s roughly an 8% slope also written as a 4.8 degree angle slope.

How do you find the angle of a ramp?

To calculate the angle of the ramp in degrees, divide your ratio to get a decimal. Then take the arc tangent of the quotient using a scientific calculator to get the angle. For example, a ramp with a 1-to-12 slope yields the decimal 0.083. The arc tangent of this number is approximately 5 degrees.

Article first time published on

What is the best material for a ramp?

Materials and Tools Steel or aluminum can be used for construction, too, but using lumber for ramps is the least expensive option. Like a deck, ramps made from pressure treated wood are sturdy and resilient when properly built and maintained.

How do I build a ramp for free?

The “Habitat for Safe Seniors Free Ramp” Program falls under the “Home Safety and Repair” Program which provides: Free home repair assistance for seniors such as adding a step, fixing a handrail, stabilizing loose banisters, and replacing rotted landings, plumbing repairs and more.

Can I use plywood for a wheelchair ramp?

Can I use plywood for a wheelchair ramp? For an indoor ramp, plywood might work, but when building a wheelchair ramp outdoors, use pressure-treated lumber.

How long should a ramp be for 5 steps?

A 5 inch rise requires a 5 foot ramp, a 12 inch rise requires a 12 foot ramp and so on. The ADA recommends this slope for long home ramps as well as commercial ramps.

How long does a ramp need to be for 4 steps?

For commercial occupied use, the Americans with Disabilities Act (ADA) recommends a 1:12 slope. This means that every 1” of the vertical rise needs at least 1′ (12”) of ramp length.

How wide should a wheelchair ramp be?

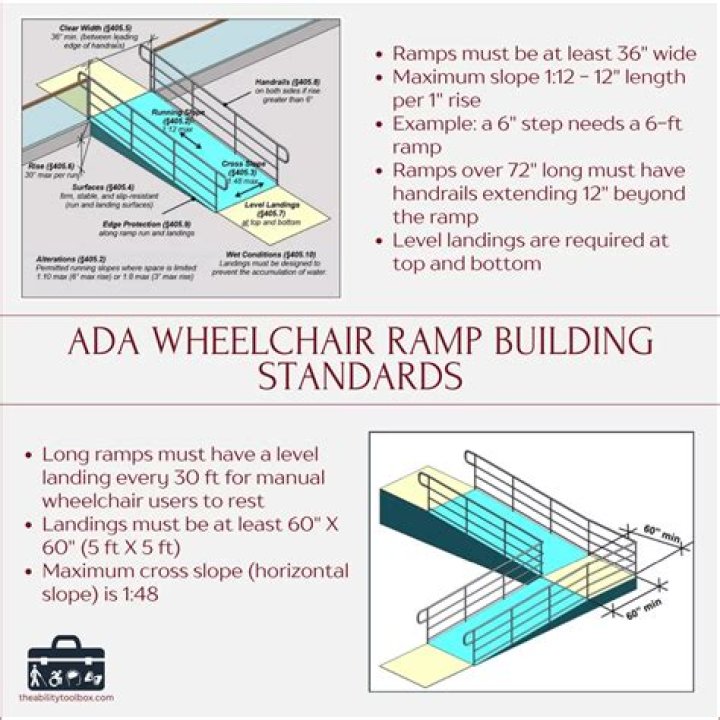

Ramp Width The minimum inside width between the opposing handrails must be at least 36 inches to accommodate a wheelchair. This means the ramp must be built at least 42 inches wide to allow for the 1-1/2-inch spacing between the handrail and any surface and the actual 1-1/2-inch handrail.

Do residential ramps need to be ADA compliant?

Residential ramp applications are not required to follow the ADA commercial code, but it is suggested that residential ramps adhere to a standard with a slope up to (but not more than) a 2:12 ratio, or one foot of ramp for every 2 inches of vertical rise.

Do home ramps have to be ADA compliant?

The ADA requires curb ramps and ramps to be installed along any accessible route in a public area, along a path where there’s a change in height greater than ½ inch. … Clear Width: A ramp run must be at least 36 inches wide between the ramp’s handrails.

What is a comfortable slope to walk on?

The slope is one inch vertically for every 16 inches horizontally. The maximum good slope is easily manageable by both people walking and wheelchair users, so I think it is. The ADA requires that ramps rise no higher than 30 inches.

How much should I charge to build a wheelchair ramp?

A professionally-built wheelchair ramp will cost between $991 and $3,125, with an average of $2,058. Depending on the materials chosen for the structure and the price of labor, expect to pay between $100 and $250 per linear foot. A standard unit is 30 feet long, 30 inches wide, and 30 inches high.

How do you determine the slope?

To find the slope, you divide the difference of the y-coordinates of 2 points on a line by the difference of the x-coordinates of those same 2 points.

What can I put on a ramp to keep from slipping?

Hard Rubber Matting The same rubber matting that is used in gyms, playgrounds and day care centers may be used to provide an anti-slip surface on a wheelchair ramp. Rubber matting is commonly available in a self-adhesive or interlocking tile applications.

Does Medicare pay for a handicap ramp?

Medicare never covers home modifications, such as ramps or widened doors for improving wheelchair access. Though your doctor may suggest that home modifications may help due to your medical condition, Medicare does not include coverage for them under its durable medical equipment (DME) benefit.

Does the VA build wheelchair ramps?

Make a Home Accessible With Department of Veterans Affairs Programs. … Depending on your unique needs, modifications such as a wheelchair ramp, wider doorways or even a special doorbell can make a big difference in your accessibility at home.

Who builds ramps for veterans?

Our Story. Greg Schneider, founder, began building ramps for veterans in 2014 because he found the gratification so rewarding.

How do I make my wooden ramp less slippery?

The fastest and simplest way to address the slipperiness of a ramp is to apply pieces of nonslip tape, or grip tape, to the boards on the ramp.

How thick should plywood be for a ramp?

My recommendation for surfacing an outdoor ramp is to use two layers of 3/8″ untreated plywood, paint the top layer of plywood with polyurethan paint (maybe the underneath side as well), then use a layer of 1/4″ massonite for the top surface (smooth side up), painted with spar urethane, and a giant tarp to cover when …

What is the maximum slope allowed for wheelchair ramps in general?

Maximum slope for hand-propelled wheelchair ramps should be 1″ of rise to every 12″ of length (4.8 degree angle; 8.3% grade). Maximum slope for power chairs should be 1.5″ rise to 12″ length (7.1 degree angle; 12.5% grade). Minimum width should be 36″ (inside rails) – (48″ is ideal).
