Are antennas passive or active

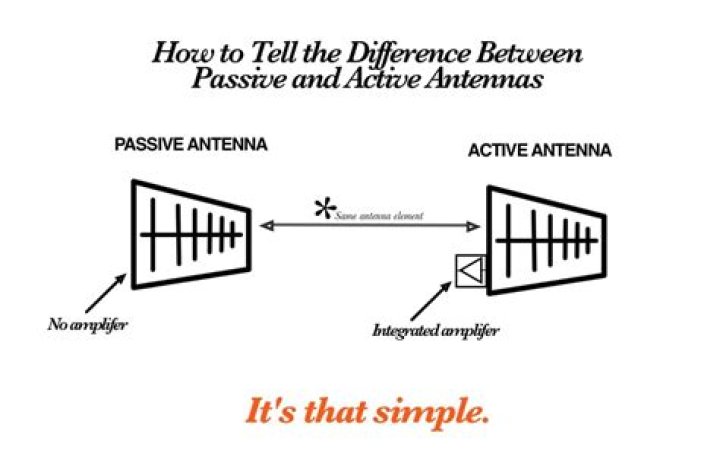

Active antennas are any antennas with integrated signal amplifiers built right into the unit, like the Shure UA874. Passive antennas are antennas that have no amplification stages, like the CP Beam. An active antenna is a passive antenna that simply includes an onboard amplifier. … An independent in-line RF amplifier.

Is antenna an active device?

Antenna is a passive device. The definition for a device to be active states that it should be able to control the current or should have some capacity to create power or can amplify voktage or current. Since antenna only transmits the input signal provided to it and no other control hence it is called passive device.

What are passive antennas used for?

Passive Antenna System This is where your system can be passive or active. The passive distributed antenna system can grab cellphone signals from the top of a building’s roof and run those signals to feeder cables to distribute throughout the building.

Are antennas passive conductors?

Unlike amplifiers, antennas are electrically “passive” devices which conserve total power, and there is no increase in total power above that delivered from the power source (the transmitter), only improved distribution of that fixed total.

What is an active antenna system?

An active antenna is an antenna that contains active electronic components like antenna-integrated radio designs place the RF module next to the passive antenna to reduce cable losses. … As a base station system evolved, the AAS integrated the active transceiver array and the passive antenna array into one radome.

What is AAU antenna?

Huawei AAUs integrate radio units and antenna devices through an upward movement of radio functions from distributed base stations to antenna devices. … Huawei’s Massive MIMO AAU achieves a fivefold increase in network capacity, significantly reduces the cost per bit, and improves user experience.

Why is the gain of an antenna called passive?

Re: why antenna has gain The torch can illuminate a certain area in front of it better than for instance the area behind the parabolic mirror. So an antenna gain is a “passive” one, it has higher amount of radiation to certain direction(s) with respect to other direction(s).

Are antennas correct?

The plural noun form of “antenna” comes in two flavors: “antennas” and “antennae.” If you look up antenna in an English dictionary, you’ll see that the plural, antennas, is used to refer to electrical instruments, and antennae, to the protuberances found on the heads of insects.

How antenna produces electromagnetic waves?

As the electrons (tiny particles inside atoms) in the electric current wiggle back and forth along the antenna, they create invisible electromagnetic radiation in the form of radio waves. … 1) Electricity flowing into the transmitter antenna makes electrons vibrate up and down it, producing radio waves.

What is antenna communication?

Antennas are a very important component of communication systems. By definition, an antenna is a device used to transform an RF signal, traveling on a conductor, into an electromagnetic wave in free space. … When a signal is fed into an antenna, the antenna will emit radiation distributed in space in a certain way.

Article first time published on

Does a passive antenna need power?

Passive antennas do not require power supply.

How do I turn on my active antenna?

Active vs. Passive antennas consist of only an RF receiving element and draw no power from the receiver while active antennas contain a low-noise amplifier and must receive power from the receiver through the RF connector. Active antennas typically add 3-50 mA of current draw to a system.

Do passive antennas have gain?

You are right that passive components therefore can’t have “gain” (in this case used to imply gain > 1). However, for antennas, there are two important differences in what “gain” means: It’s the highest gain the antenna can achieve in a particular direction.

Do antennas employ active or passive amplification techniques?

Active antennas are any antennas with integrated signal amplifiers built right into the unit, like the Shure UA874. Passive antennas are antennas that have no amplification stages, like the CP Beam. An active antenna is a passive antenna that simply includes an onboard amplifier.

What is advanced antenna systems?

Advanced antenna systems (AAS) is the general term used to describe antenna systems utilizing techniques aiming at improving performance and spectral efficiency of radiocommunication transceivers taking advantage of antenna array theory and practice.

What is a MIMO antenna?

Introduction to MIMO. … MIMO stands for Multiple-In Multiple-Out, referring to the fact that when a packet is transmitted into the channel it transmitted on more than one antenna and when it comes out of the channel it is received on multiple antennas.

How does active gain and passive gain work?

Passive gain uses no extra amplification and relies fully on the directionality of the antenna for increased RF energy in a desired direction. Active gain uses an RF amplifier to increase the signal strength. The amplifier is placed in path between the AP and antenna or between the radio and antenna.

How does an active GPS antenna work?

How it works. Satellites orbiting the earth transmit radio signals down to the earth. The GPS antenna receives the signal (active antennas amplify the signal a bit) and sends it down the line to the receiver. … Based on the time and the satellites the receiver can ‘see’ it calculates its position on the earth.

Why does antenna have gain?

Antenna gain indicates how strong a signal an antenna can send or receive in a specified direction. Gain is calculated by comparing the measured power transmitted or received by the antenna in a specific direction to the power transmitted or received by a hypothetical ideal antenna in the same situation.

What antennas are used for 5G?

Upgraded antenna technologies, such as massive multi-input multi-output (mMIMO), sub-6 GHz and millimeter-wave (mmW) carrier aggregation (CA), and full-dimensional (FD) beamforming/MIMO (FD-MIMO) are also considered essential antenna technologies that enable 5G use cases.

What is 5G technically?

Fifth-generation wireless (5G) is the latest iteration of cellular technology, engineered to greatly increase the speed and responsiveness of wireless networks. … These speeds exceed wireline network speeds and offer latency of 1 millisecond (ms) or lower, which is useful for applications that require real-time feedback.

What is AAU in 5G?

Discover why our 5G Massive MIMO AAU (Active Antenna Unit) can be deployed so quickly on a large scale around the world, maximize TCO savings and provide the ultimate experiences.

How does current flow in an antenna?

The current in each part of the antenna flows in the same direction. Such current is called antenna mode current. This condition is special because it results in radiation. As the signal applied to the two halves of the antenna oscillates, the field keeps reversing and sends out waves into space.

What are antennas made of?

An antenna is a device made of conductive metal (metal that conducts electricity) that sends and/or receives electromagnetic radio waves.

What is produced in the receiving antenna when radio waves are absorbed?

When radio waves are absorbed by a conductor , they create an alternating current .

What is plural antenna?

Kids Definition of antenna 1 plural antennae\ -​ˈte-​nē \ : one of two or four threadlike movable feelers on the head of insects and crustaceans (as lobsters) 2 plural antennas : a metallic device (as a rod or wire) for sending or receiving radio waves. More from Merriam-Webster on antenna.

How do you say antenna plural?

noun, plural an·ten·nas for 1, an·ten·nae [an-ten-ee] for 2.

What is polarization of antenna?

The polarization of an antenna is loosely defined as the direction of the electromagnetic fields produced by the antenna as energy radiates away from it. These directional fields determine the direction in which the energy moves away from or is received by an antenna.

What type of antennas are used in cellular communication?

Sector antennas are used extensively for cellular communication. A commonly used directional antenna is the Yagi-Uda Array, usually just called a Yagi. It was invented by Shintaro Uda and his colleague, Hidetsugu Yagi, in 1926. A Yagi antenna uses several elements to form a directional array.

Which antenna is used in cellular communication?

PIFA antennas are used widely in mobile phone antennas design due to its advantages such as SAR rate and less interaction with hand-held environment, but one of the significant problems of PIFA antennas that’s PIFA antennas have a narrow bandwidth.

What is the difference between passive and amplified antenna?

Passive antennas transmit available channels to your TV without requiring a power source to assist reception. Amplified antennas use a powered in-line or integrated amplifier to boost signal strength.
